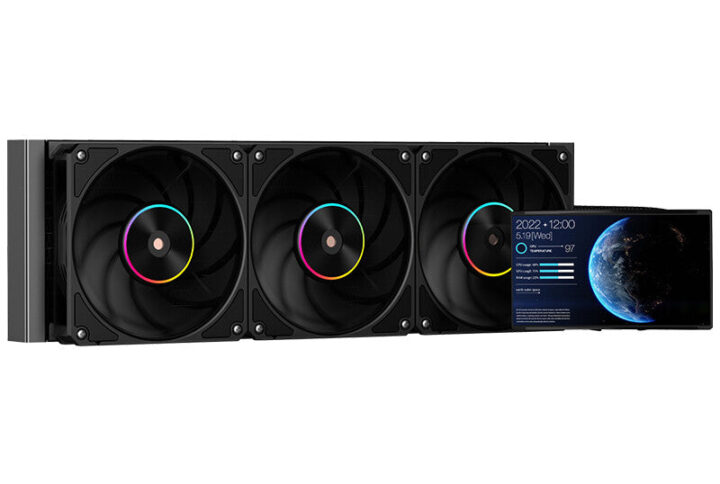

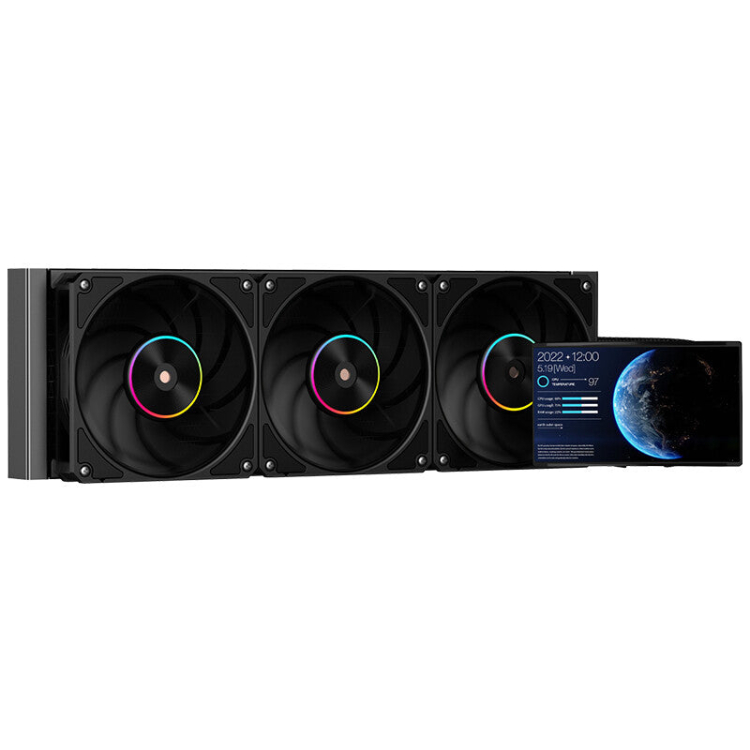

ARCTIC SPHERE V2 Liquid Cooler
The ARCTIC SPHERE V2 is a pre-filled liquid cooling All In One system, which is maintenance-free and practical. The pump features a 2.8″ LCD display with a resolution of 480×480 that can be fully customized using software downloadable from our website. The large copper base plate ensures optimal performance. The high-density radiator with Z-type design comes with 3 very quiet 120mm ARGB “addressable” PWM fans that can be connected to the motherboard or case controller if provided. These high-level specifications guarantee long-lasting durability, excellent heat dissipation, and incredible silence.
Specifications:
- MTTF of fan: 30000 hours
- Pump motor speed: 2500 RPM
- Maximum fan noise level: 33.1 dB
- Bearing type: Hydraulic
- PWM support: Yes
- Maximum air pressure: 1.85 mmH2O
- Maximum airflow: 76.01 CFM
- Maximum rotation speed: 1800 RPM
- Minimum rotation speed: 80 RPM
- Supported Sockets: LGA 1851, LGA 2011, Socket AM4, LGA 1150, Socket AM5, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700
- Fan diameter: 12 cm
- Type: All In One Liquid Cooler
- Screen size: 70.13 x 70.13 mm
- Display type: LCD
- Fan connector: 4-pin
- LED lighting colors: Amber, Blue, Green, Red
- LED lighting: Yes
- Number of fan blades: 9
- Number of fans: 3
- Radiator material: Aluminum
- Product color: Black
- Thermal Design Power (TDP): 300 W
- Current limit: 0.2 A
- Voltage: 6 – 13.2 V
- Weight: 8.2 kg
- Pump height: 8.05 cm
- Height: 120 mm
- Pump depth: 9.25 cm
- Pump width: 10 cm
- Tubing length: 38 cm
- Radiator height: 2.7 cm
- Radiator depth: 12 cm
- Radiator width: 39.7 cm
- Width: 397 mm
